Batch Foaming Machine
With the increasing competition in the Flexible Polyurethane Foam Industry, emphasis has shifted to production techniques which involve low capital investment. Our latest Batch Foaming Machine aims at the same.
Batch Foaming Machine
One can easily establish oneself in the foam industry with only modest capital outlay.
Installation requires small building space.
Easy to operate since no special training or skill required.
Both Cylindrical and Rectangular Blocks can be produced with one extra mould only.
Flat top blocks can be produced with the help of floating lid.
10 blocks per hour can be produced with two moulds.
|Machine Dimensions||3m x 1m x 3m (h)|
|Mould Size||2m x 2m x 1.2m (h)|
|Production Capacity||8 - 12 blocks|
|Max. Shot Weight||120 Kgs|
|Air Consumption||5 m3/hour at 6 kg per cm|
|Room Size||25 feet X 50 feet approx.|
BFP 201 A: Fully automatic, Four streams viz Polyol, TDI, Catalyst A & Catalyst B all metered automatically
BFP 201 SA: Semi automatic, Two streams viz Polyol, TDI metered automatically while other to be holded manually.
BFP 201 M: Manual all chemicals are to be added manually.

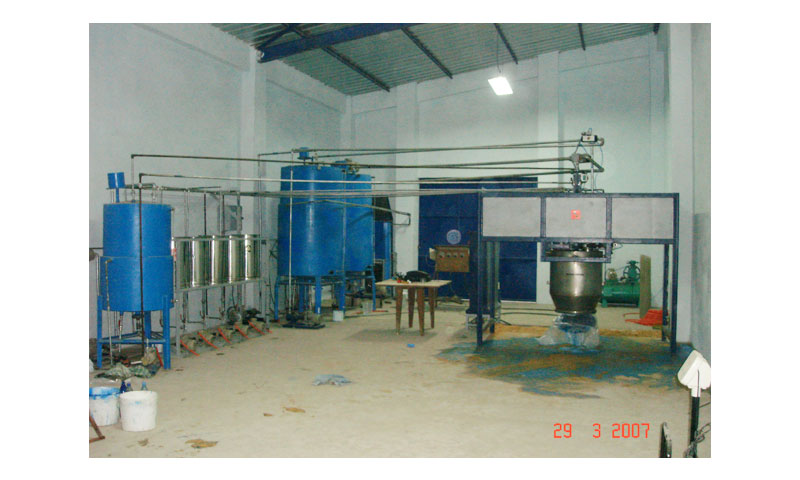

BFP 201 A

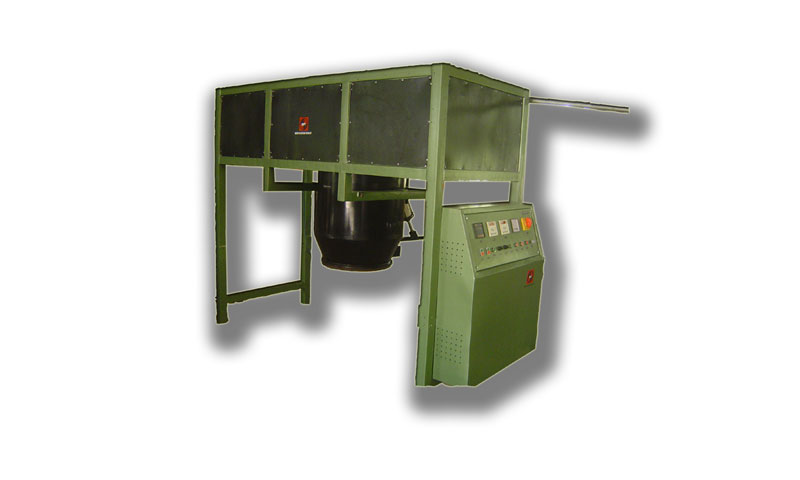

BFP 201 SA

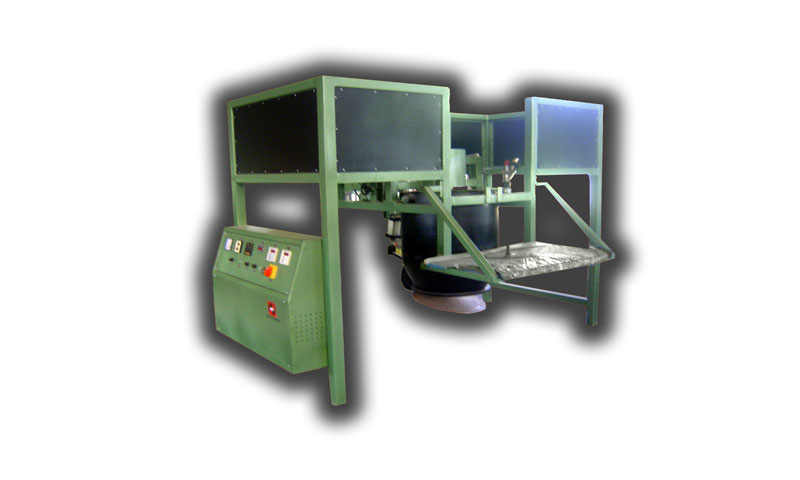

BFP 201 M

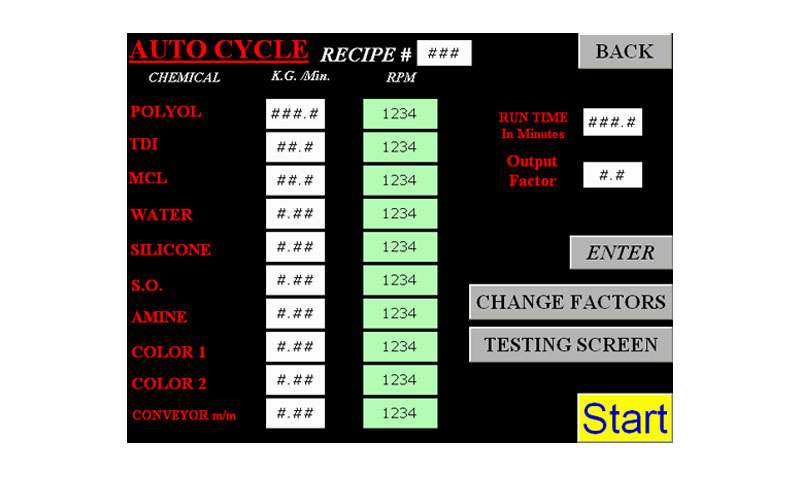

Touch Screen Panel

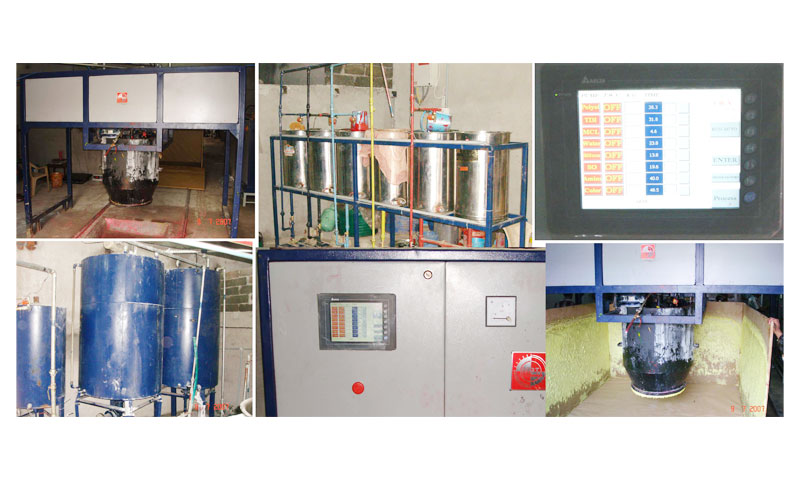

Different views of BFP201A Plant
| ||BFP 201 A||BFP 201 SA||BFP 201 M|
|Polyol tanks with agitator||2000kg||2000kg||Nill|
| ||2m X 2m X 1m or as customer specified||2m X 2m X 1m or as customer specified||2m X 2m X 1m or as customer specified|
Note: The plant is complete and ready for use after connection to power supply, compressed air supply and provision for flushing water supply.
The customer is required to make necessary arrangements for exhaust & ventillation.
Storage tanks are optional with BFP 201m.
In all the three models the final mixing time, mixing speed, opening of bottom lid of the mixing tank are controlled automatically.
All storage tanks are provided with temperature conditioning jackets, stirrers, temperature guages, level guages and level switches.
Process: All the chemicals are first metered separately and then put together in the mixing tank of the machine. Then after setting the RPM and mixing time period, the chemicals are automatically poured in the mould of predefined size. Then mould is removed and the machine is washed thoroughly to make it ready for the next batch. With the help of two moulds, it is possible to make 10-12 blocks per hour depending upon the density..
